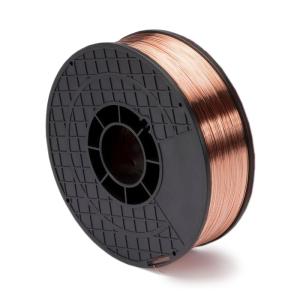

Solid Copper Coating CO2 Welding Wire ER70S-6 Accept OEM

Name: Solid Copper Coating CO2 Welding Wire ER70S6 Accept OEM
Brand: LONGTENG
Price: 1 USD

Brand Name : LONGTENG

Model Number : ER70S-6 (ER50-6N)

Certification : TUV CE, ABS, DB, ISO9001

Place of Origin : CHINA

MOQ : one pallet

Price : USD 1

Supply Ability : 1,200,000 TON PER YEAR

Delivery Time : 15 WORKING DAYS

Packaging Details : Neutral box/ LT color box/OEM brand box

Product name : CO2 gas shielded welding wire ER70S-6

Model : ER70S-6

Brand : LONGTENG

Diameter : 0.8/0.9/1.0/1.2/1.6mm

Weight : 1/5/15/20kg

Surface : Cooper plating

Spool material : Black plastic spool

Packing : Color box

OEM : Accept

Diameter of spool : 100/200/270/300mm

Contact Now

SOLID WELDING WIRE ER70S-6 SOLID MIG WIRE WELDING ER70S-3 ER70S-4 ER70S6 CO2 WELDING WIRE

APPLICATIONS:

It is suitable for the welding of carbon steel and low alloy steel, such as Gr.50, and so on.

CHARACTERISTICS:

This wire is for Rm 500MPa level carbon steel with shield gas of CO2 or M21. Small spatter, beautiful appearance, high deposition efficiency and small weld metal porosity sensibility. All positions is suitable.

Solid Welding Wire
Type	Grade	GB	AWS
CO2 Mig Welding Wire	MG49-1, MG49-Ni, MG50-3, MG50-4, MG50-6, MG50-G, MG59-G	ER49-1, ER49-G, ER50-2, ER50-3, ER50-4, ER50-6, ER50-G,	ER70S-G, ER70S-3, ER70S-4, ER70S-6,
TIG Welding Filler Wire	TG50RE, TG50, TGR50M, TGR50ML, TGR55CM, TGR55V, TGR55CML, TGR55VL, TGR55WB, TGR55WBL, TGR59C2M, TGR59C2ML	ER50-4, ER55-B2, ER55-B2L, ER55B2MnV, ER62-B3, ER62-B3L,	ER70S-4,
Submerged arc welding wire	HO8A, HO8E, HO8MnA, H10Mn2, H10MnSi	HO8A, HO8E, HO8MnA, H10Mn2, H10MnSi	EL8, EM12, EH14, EM13K

LT·ER50-6 Conform to Standard :

GB/T 8110 ER50-6

ISO 14341-A-G424C13Si1

AWS A5.18 ER70S-6

JIS YGW12

Chemical Composition(%)

Chemical Composition	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Guarantee Value	0.06~0.15	1.40~1.85	0.80~1.15	≤0.025	≤0.025	≤0.15	≤0.15	≤0.15	≤0.03	≤0.50
General Result	0.077	1.45	0.87	0.013	0.012	0.017	0.031	0.002	0.004	0.125

Mechanical Properties of Deposited Metal

Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	KV₂(J)
Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	-40℃
Guarantee Value	≥500	≥420	≥22	≥47
General Result	555	450	29	77/95/83

Reference Current(DC⁺)

Size(mm)	Current range (A)	GAS flow rate(L/min)
Φ0.8	50~100	15
Φ1.0	50~220	15~20
Φ1.2	80~350	15~25
Φ1.6	170~550	20~25
